Description

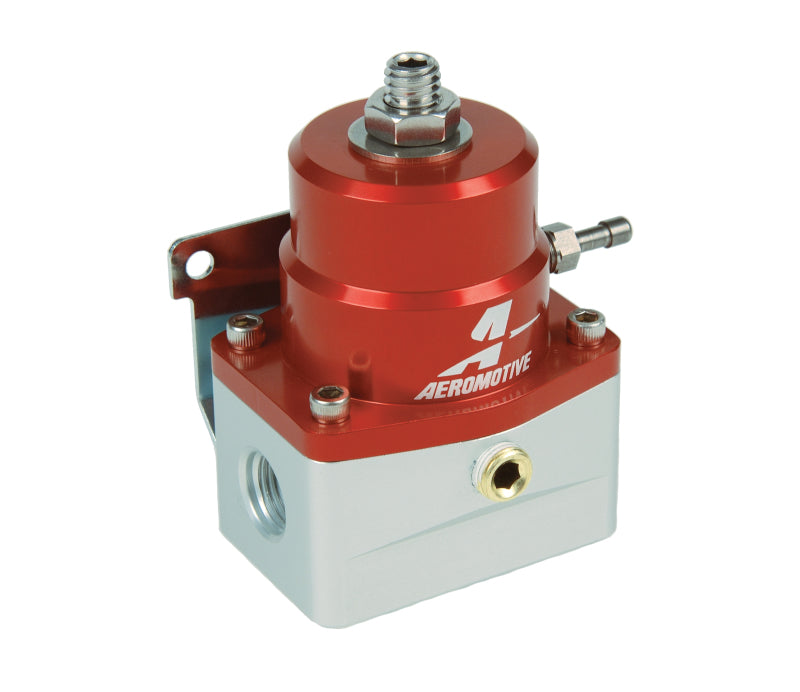

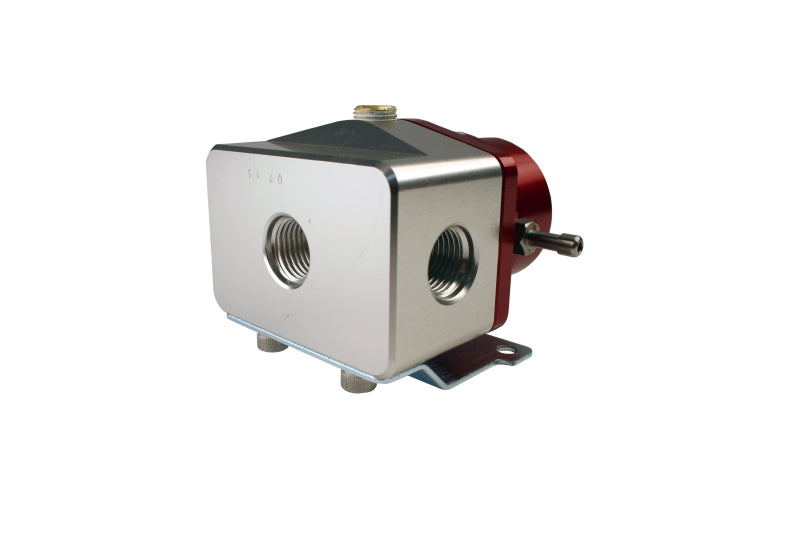

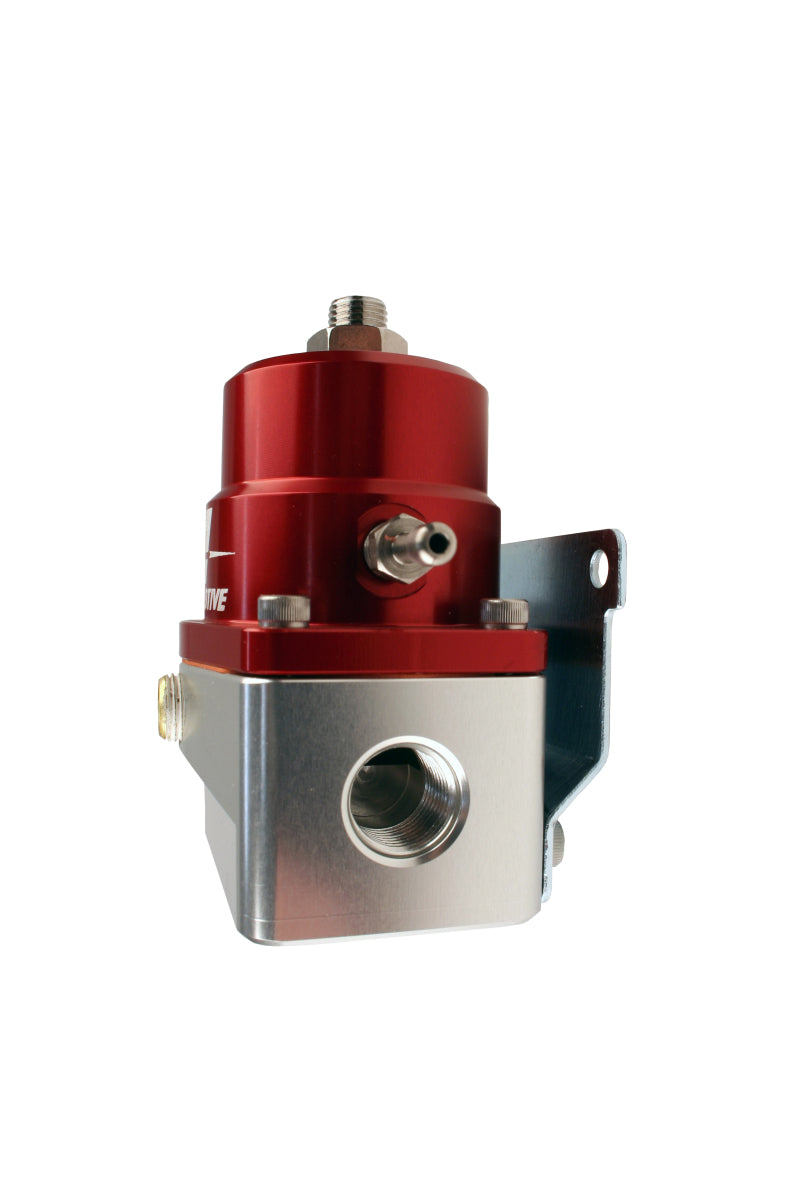

Aeromotive 13109 A1000-6 Injected Bypass Adjustable EFI Regulator (2) -6 Inlet/(1) -6 Return
Brand : Aeromotive
ManufacturerPart : 13109
UPC : 684980000306
Length : 4.4 inches
Width : 3.6 inches
Height : 2.2 inches
Weight : 1.1 lbs
Box Quantity : 1
Prop65 : Y
Performance EFI regulator designed for medium to high horsepower applications. This regulators features Aeromotive?s high-flow design, superb pressure control and legendary durability. On the street and at the track, this pressure regulator has logged more miles, laps and passes than any other performance EFI regulator in the world! Base pressure adjustable from 40-75 PSI. Gasoline and alcohol compatible. Fuel pressure rises on a 1:1 ratio with boost. 1/8? NPT gauge port. P/N 13109 provides (2) ORB-06 inlet ports and (1) ORB-06 return port.
