Aeromotive 13224 A1000 4-Port Carbureted Bypass Regulator - 4 x AN-06 / 1 x A

Aeromotive 13224 Aeromotive A1000 4-Port Carbureted Bypass Regulator - 4 x AN-06 / 1 x AN-10

Brand : Aeromotive

MPN : 13224

AlternatePartNumber : aer13224

UPC : 684980003291

Product Department : Fuel Delivery

Product Category : Fuel Pressure Regulators

BoxQuantity : 1

Length : 5.5 inches

Width : 5.5 inches

Height : 2.75 inches

Weight : 2.0 lbs

Prop65 : Yes

Not CARB Legal

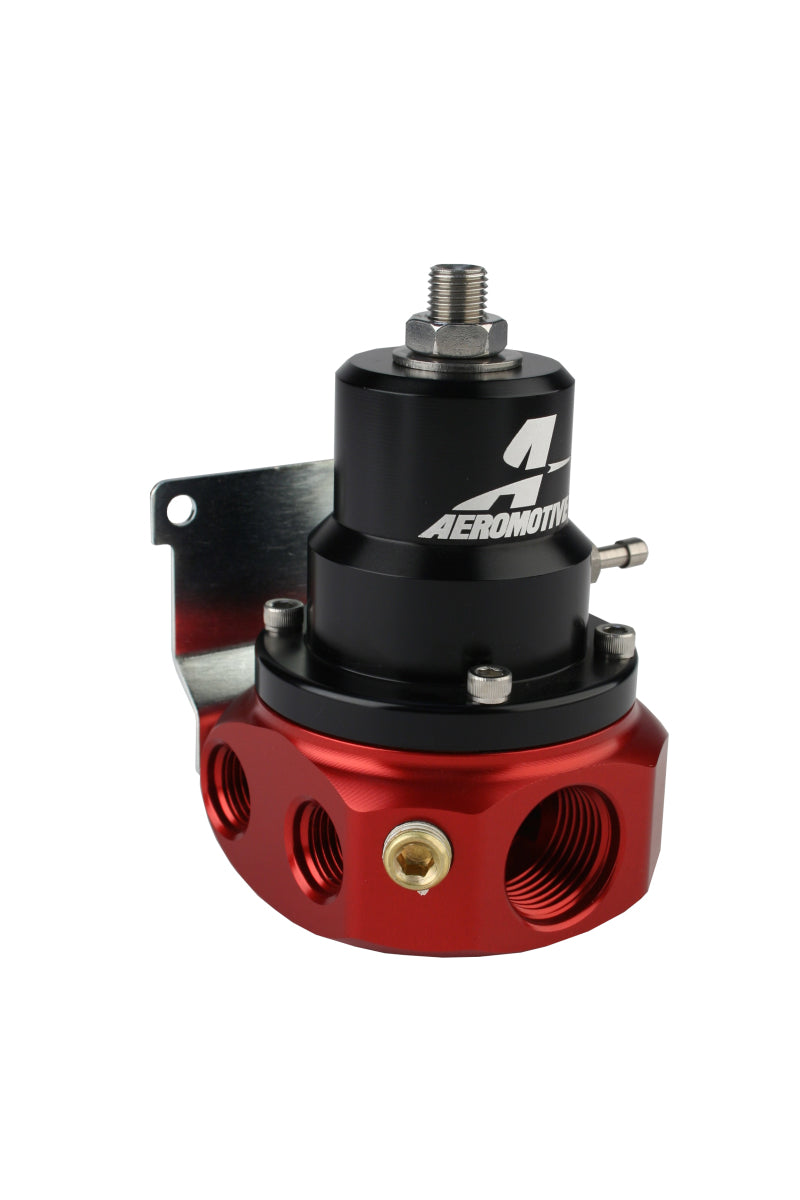

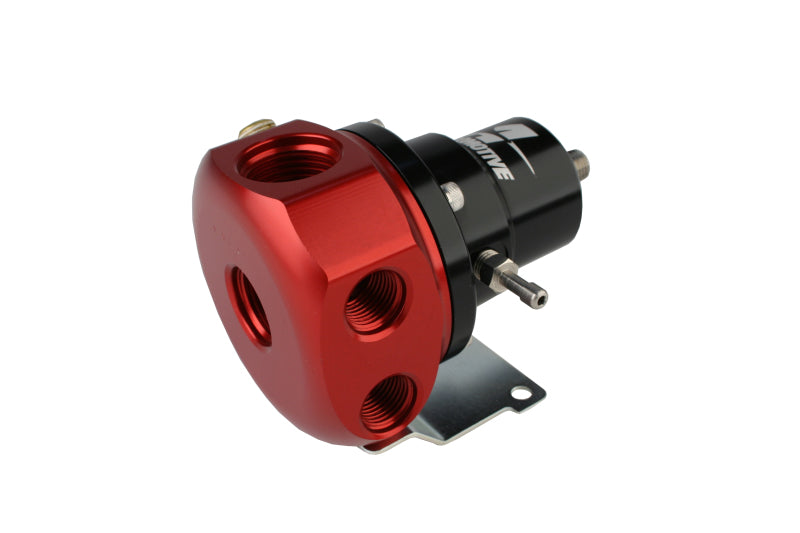

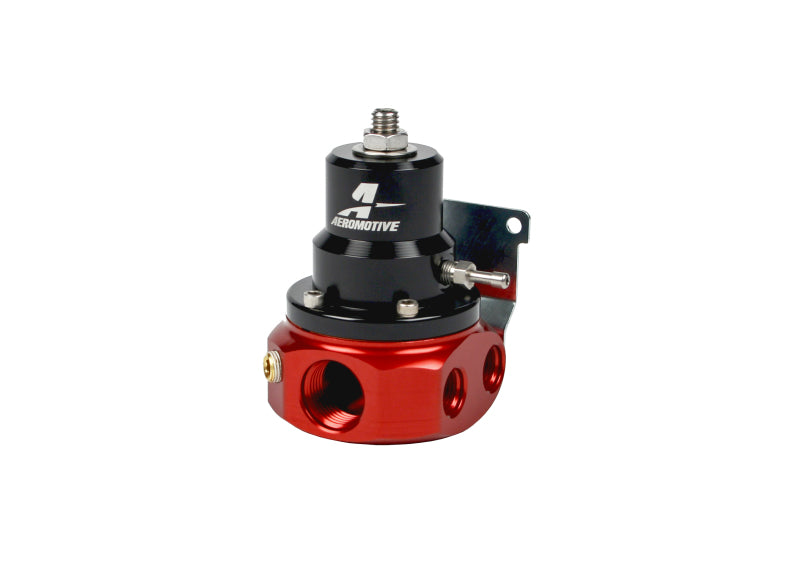

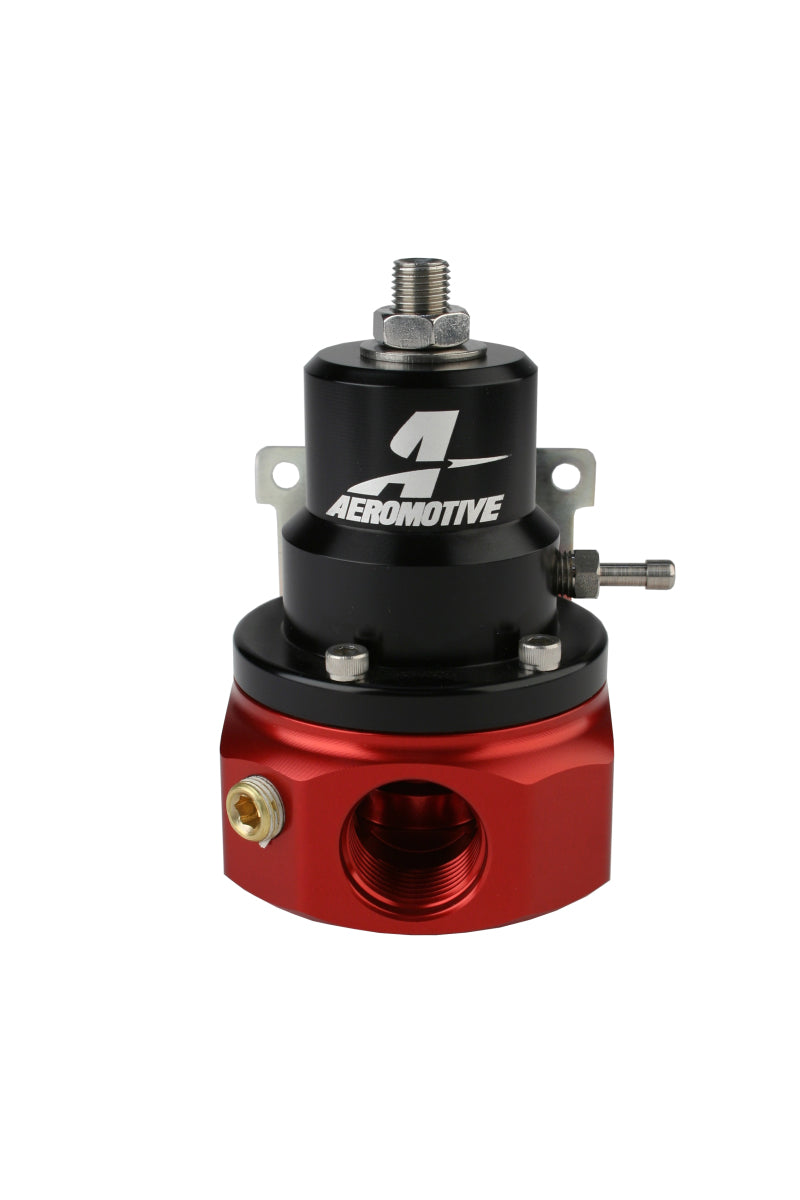

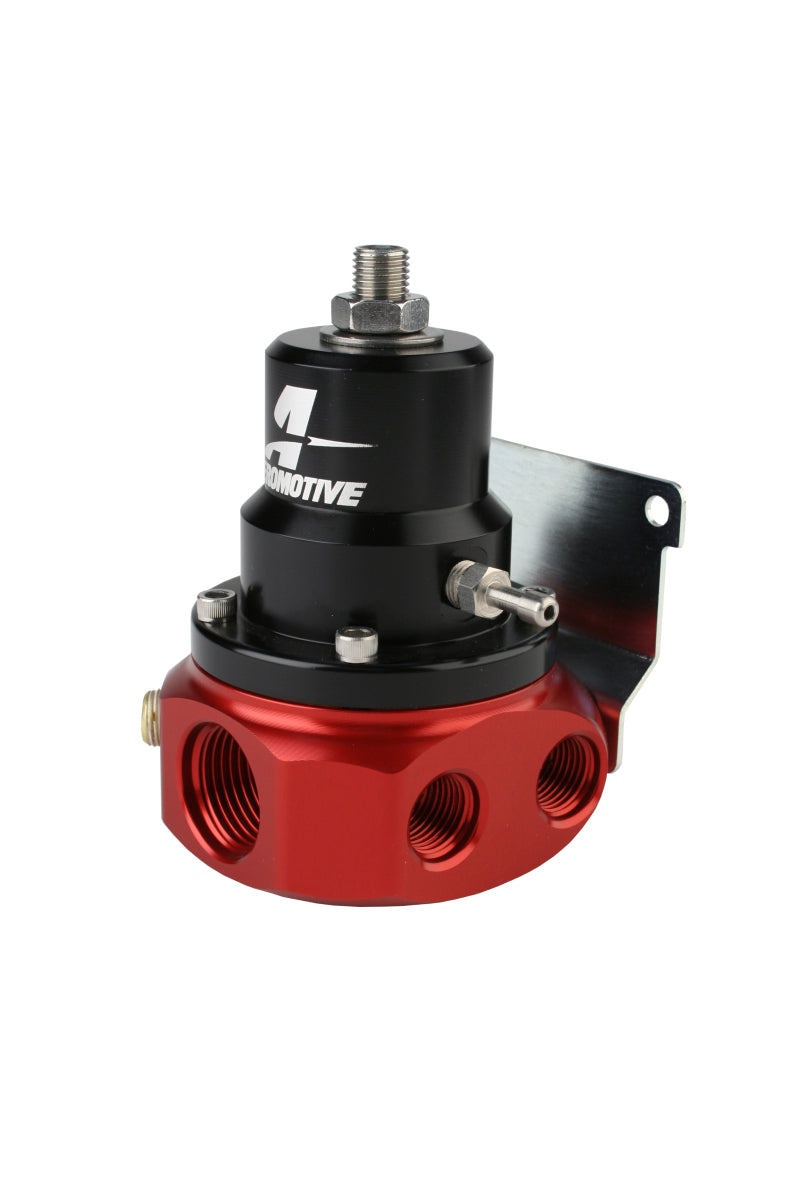

The A1000 Bypass Regulators were designed for use with our A1000 and Eliminator Fuel Pumps or similar style EFI pumps in a carbureted application. These regulators are perfect for naturally aspirated or ?blow-through? supercharged engines. Base fuel pressure adjustable from 3-15 PSI. (1) ORB-10 inlet port and (1) ORB-08 return port. P/N 13224 provides (4) ORB-06 outlet ports and 1/8' NPT gauge port. Fuel pressure rises on a 1:1 ratio when referencing boost. Bypass design provides the ultimate, dynamic fuel delivery system. Ideal for converting from fuel injection to carburetion using the stock, in-tank pump. EFI conversions will require a larger-than-stock return line for proper low pressure control.
