Description
Aeromotive 14131 GM 3.8L L67 L32 Supercharged Fuel Rails
Brand : Aeromotive
ManufacturerPart : 14131
UPC : 684980001709
Length : 17.8 inches
Width : 6.7 inches
Height : 2.2 inches
Weight : 2.6 lbs
Box Quantity : 1
Prop65 : Y

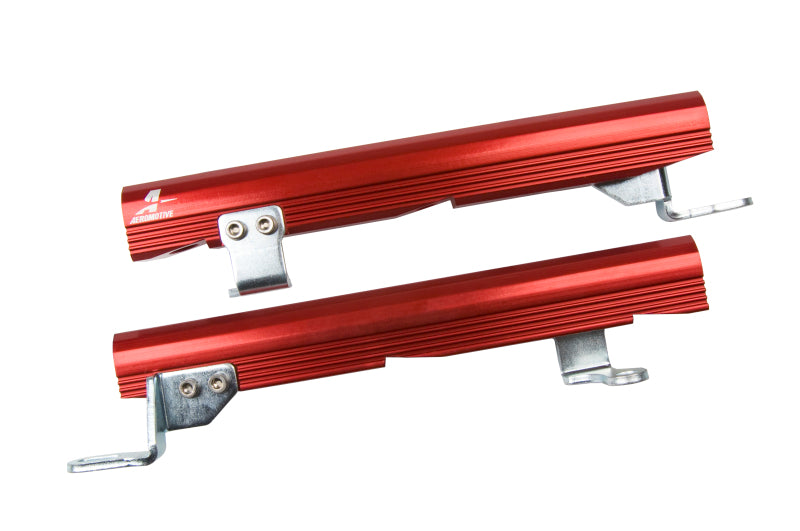

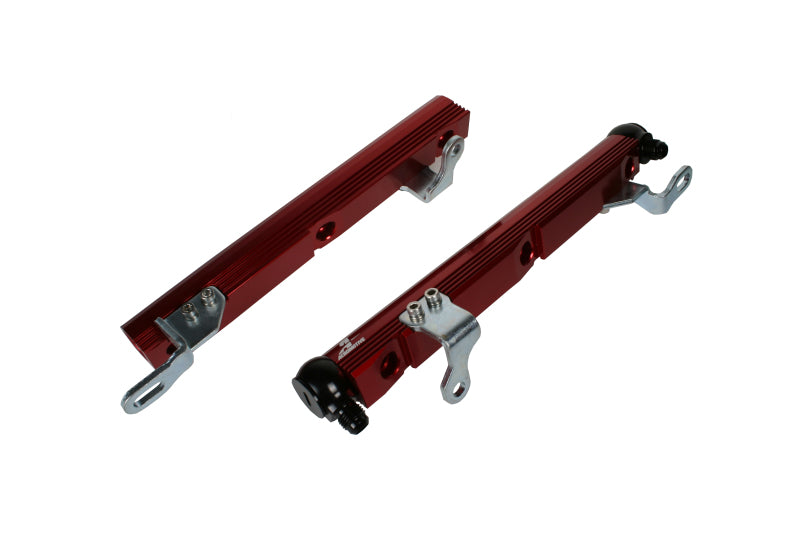

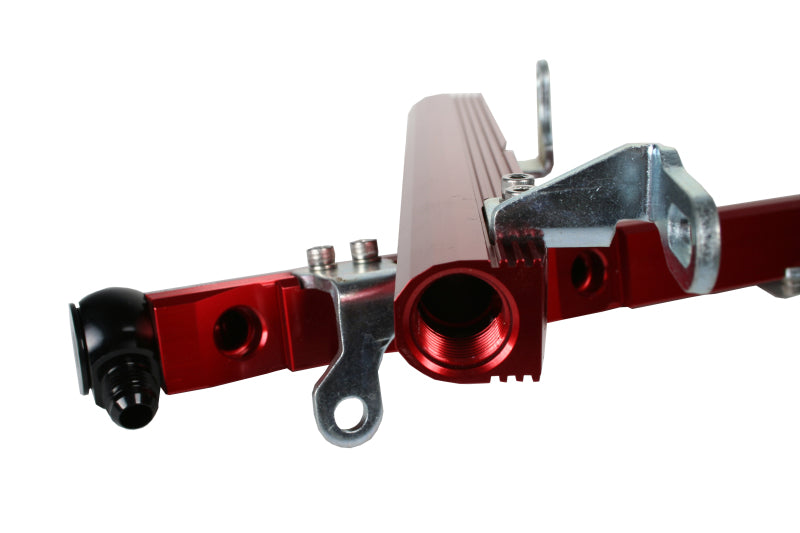

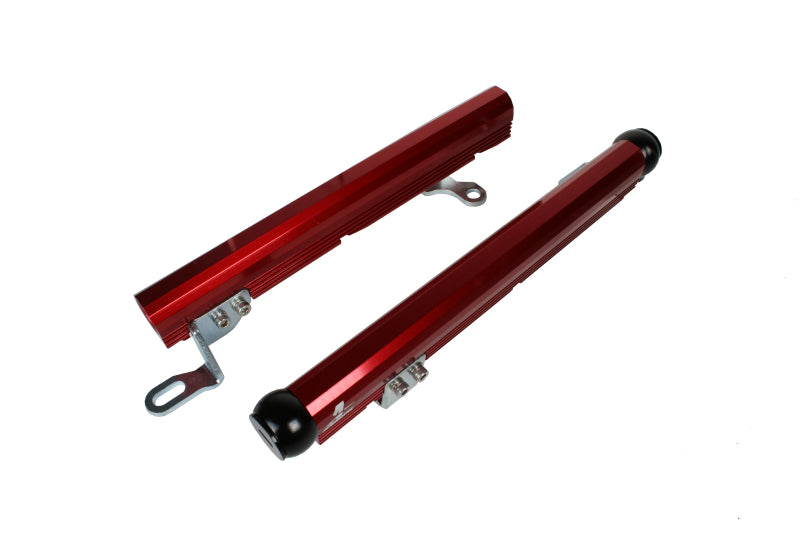

Aeromotive High Flow, Billet Fuel Rails combine 3,000 HP flow capabilities with ?bolt-on? ease of installation. Fits 1996-2007 GM Supercharged 3.8L?? Rails Only. ORB-08 Ports with compact connections and positive, leak-free sealing. Full 5/8' ID through bore, capable of supporting up to 3,000 HP. Fully compatible with -10 AN line if combined with custom ORB-08/AN-10 adapter P/N 15641. Full size ports at each end for optimal injector supply and minimal hydraulic fluctuation. Additional inlet/outlet ports are provided where required for plumbing convenience. CNC-machined, billet aluminum construction for unequaled fit and finish. Steel mounting brackets, custom engineered for each application, combining a solid, durable mounting platform with correct fit and ?bolt-on? ease of installation. Red, Type II bright dip anodized finish that looks great and protects against corrosion.
Installation Instructions
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1998 | Buick | Regal | 25th Anniversary Edition |
| 1997-1999 | Buick | Regal | GS |
| 1997-1999 | Buick | Regal | LS |
| 1996-1999 | Buick | Riviera | Base |
| 2004-2005 | Chevrolet | Impala | Base |
| 2004-2005 | Chevrolet | Impala | LS |
| 2004-2005 | Chevrolet | Impala | Police |
| 2004-2005 | Chevrolet | Impala | SS |
| 2004-2005 | Chevrolet | Monte Carlo | LS |
| 2005 | Chevrolet | Monte Carlo | LT |
| 2004-2005 | Chevrolet | Monte Carlo | SS |
| 1996,2005-2006 | Pontiac | Grand Prix | Base |
| 1996-2003,2005-2006 | Pontiac | Grand Prix | GT |
| 2004 | Pontiac | Grand Prix | GT1 |
| 2004 | Pontiac | Grand Prix | GT2 |
| 1996-2005 | Pontiac | Grand Prix | GTP |
| 2005-2006 | Pontiac | Grand Prix | GXP |
| 1996-2003 | Pontiac | Grand Prix | SE |
