AEM 30-2052 RTD Exhaust Gas Temperature Sensor Kit

AEM 30-2052 AEM RTD Exhaust Gas Temperature Sensor Kit

Brand : AEM

MPN : 30-2052

AlternatePartNumber : aem30-2052

UPC : 840879026837

Product Department : Gauges & Pods

Product Category : Gauges

BoxQuantity : 1

Length : 4.6 inches

Width : 4.3 inches

Height : 2.3 inches

Weight : 0.26 lbs

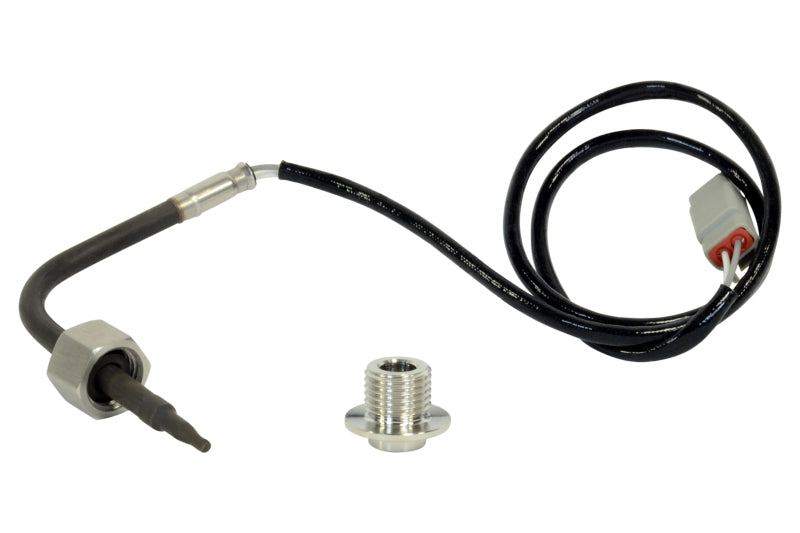

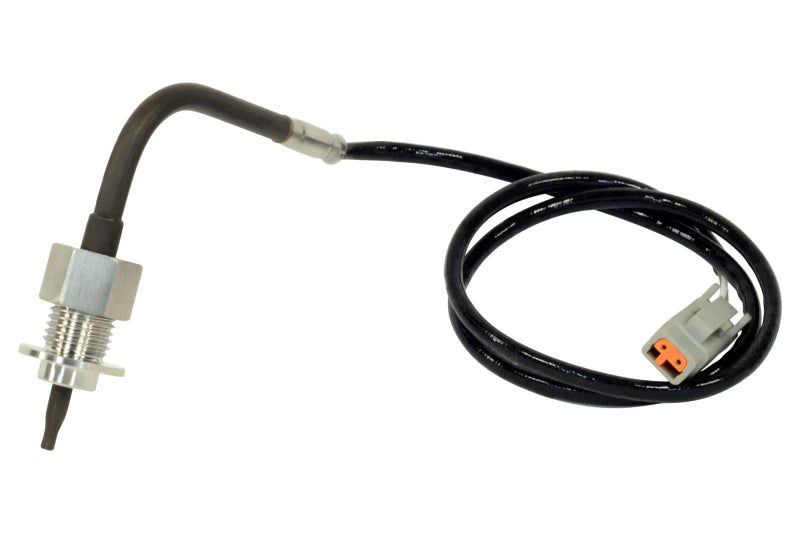

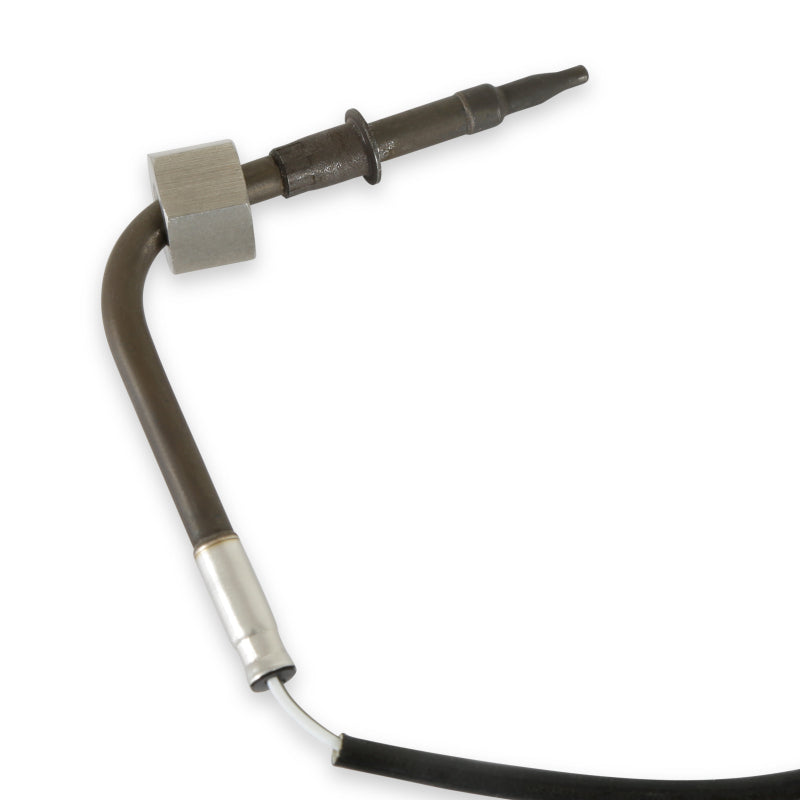

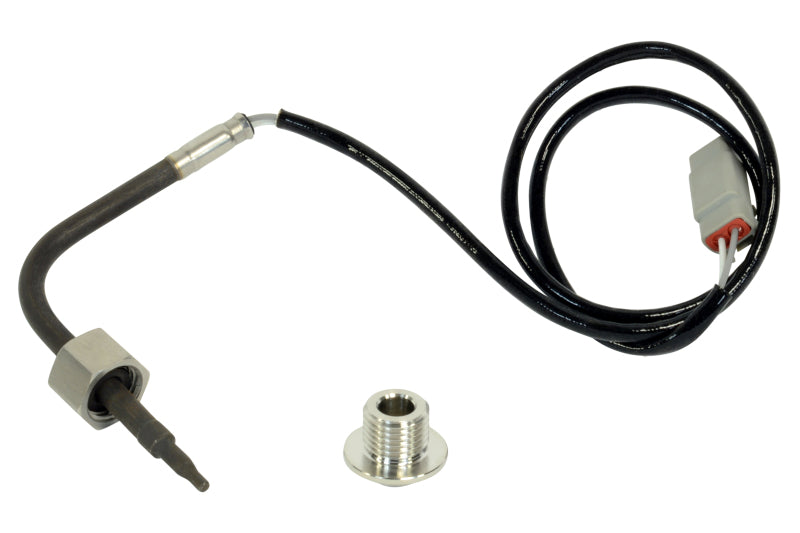

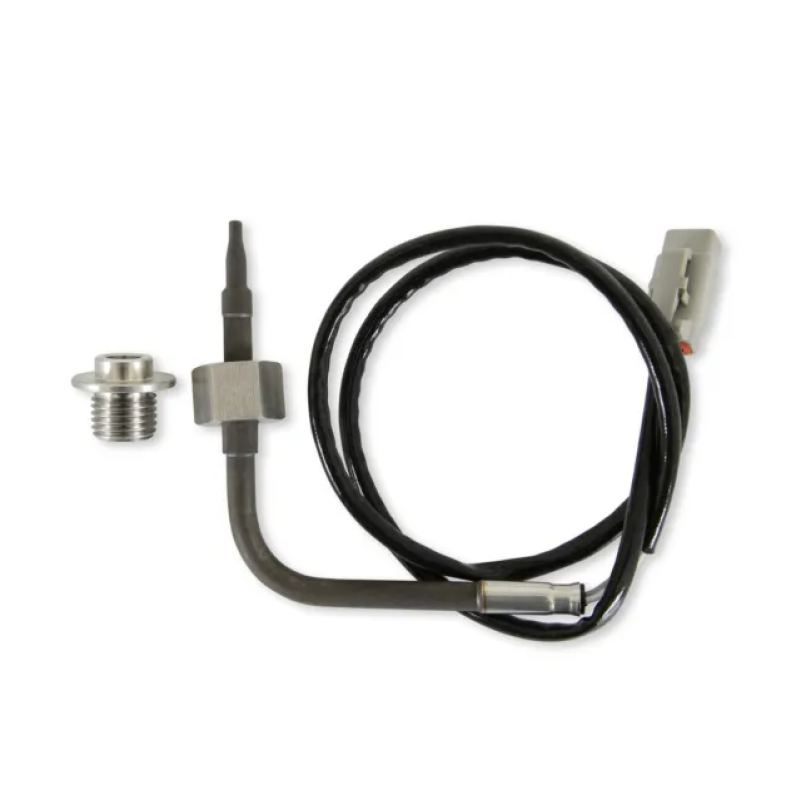

AEM's RTD-Type Temperature Sensor (PN 30-2052) is packed with features that deliver consistent measurement and long life. This AEM EGT Sensor features a closed-tip design that lasts longer than the previous generation's perforated tip design and the tip is smaller for less intrusion-and less restriction. Inconel-tubing protects the wiring, which is terminated with a high-quality DTM-style 2-pin connector. The sensor reads a temperature range of -40 to 1,560 degrees F (-40 to 850 degrees C), and its thin-film platinum element provides a high degree of accuracy (+/- 0.9% from 536 to 1,560 degrees F). Our RTD-Type Sensor features a 90-degree bend at the sensor tip for easier installation in tight spaces, and it includes a weld-in sensor bung with machined M14x1.5 threads.
Installation Instructions
