AME 50-1230 400 LPH High Flow In-Tank Fuel Pump Kit - Double Barb - Ethanol

AEM 50-1230 AEM 400 LPH High Flow In-Tank Fuel Pump Kit - Double Barb - Ethanol Compatible

Brand : AEM

MPN : 50-1230

AlternatePartNumber : aem50-1230

UPC : 90127819821

Product Department : Fuel Delivery

Product Category : Fuel Pumps

BoxQuantity : 1

Length : 6.4 inches

Width : 3.2 inches

Height : 2.9 inches

Weight : 1.1 lbs

Not CARB Legal

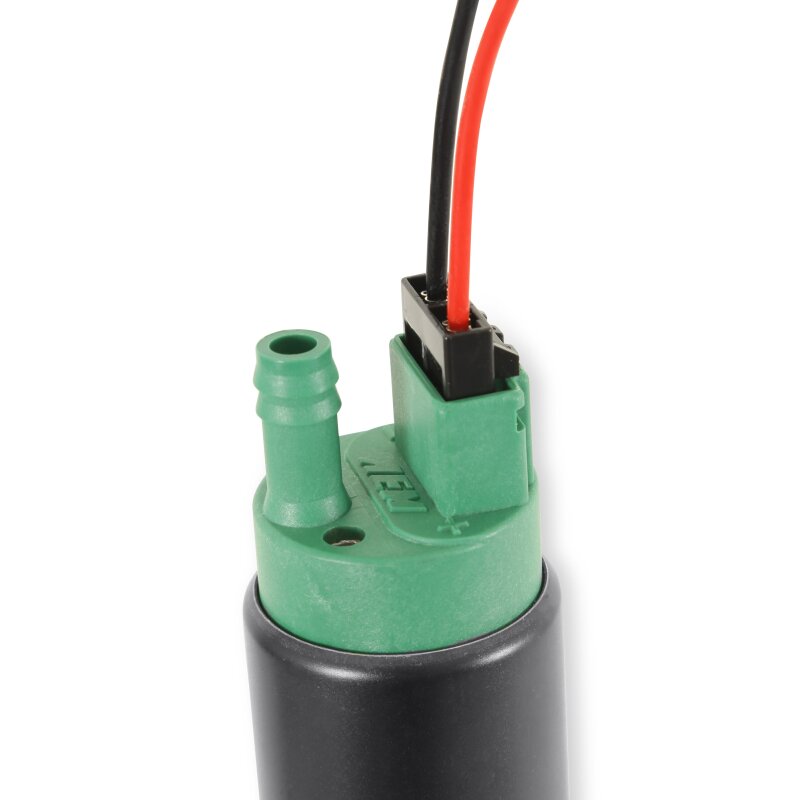

AEM's 400LPH high flow fuel pumps were designed with high performance naturally aspirated and forced induction EFI vehicles in mind! They deliver the same high flow and reliable performance that AEM has become known for at very competitive price. Each pump is individually flow tested and guaranteed to flow 400+ LPH (106 GPH) at 40 PSI (13.5V), which on gasoline will support 1000+ horsepower!* The pumps also maintain their high flowrate even as system pressure increases flowing 330+ LPH at 70 PSI (13.5V) which will support approx. 870 HP* on gasoline! Please see the flow curves and current draw vs. fuel pressure graphs on the specs tab for more information. With their compact 39mm body (same size as Walbro 255), low amperage draw, 11mm inlets and 9mm barbed outlet's these fuel pumps were designed to replace the OEM fuel pump in many applications. The 50-1230 features a double barbed outlet that is ideal for 3/8-inch ID hose where the 50-1235 features a smooth barbed outlet that is compatible with 5/16-inch ID hose. Each pump includes a wiring harness, pre filter, end cap and rubber buffer sleeve.
