ACT T1S-S07 fits Subaru 04-20 WRX STI Mod Twin HD Street Kit Unsprung Mono-Drive Hub Torque Capacity 700ft/lbs

ACT T1S-S07 fits Subaru 04-20 WRX STI Mod Twin HD Street Kit Unsprung Mono-Drive Hub Torque Capacity 700ft/lbs

Brand: ACT

MPN: T1S-S07

UPC: 842385025403

Product Department: Drivetrain

Product Category: Clutch Kits - Multi

Box Quantity: 1

Weight: 28.5 lbs

Height: 5.4 Inches

Width: 13.7 Inches

Length: 13.9 Inches

Prop65: Yes

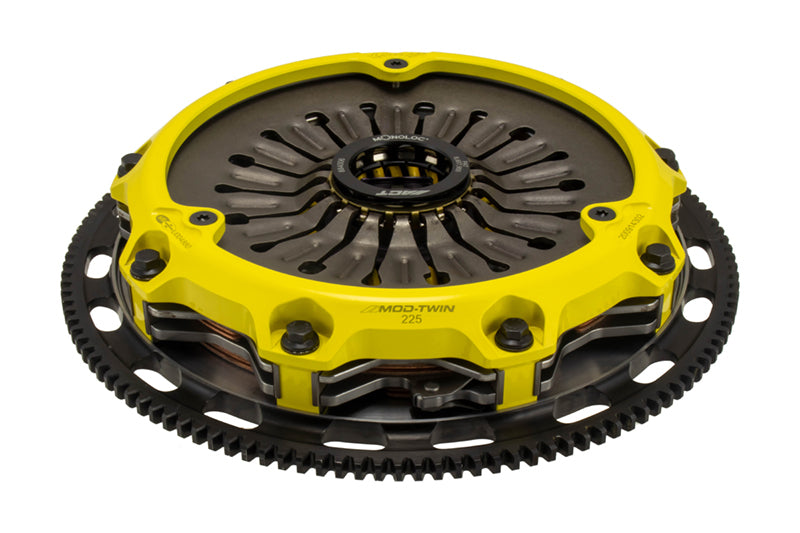

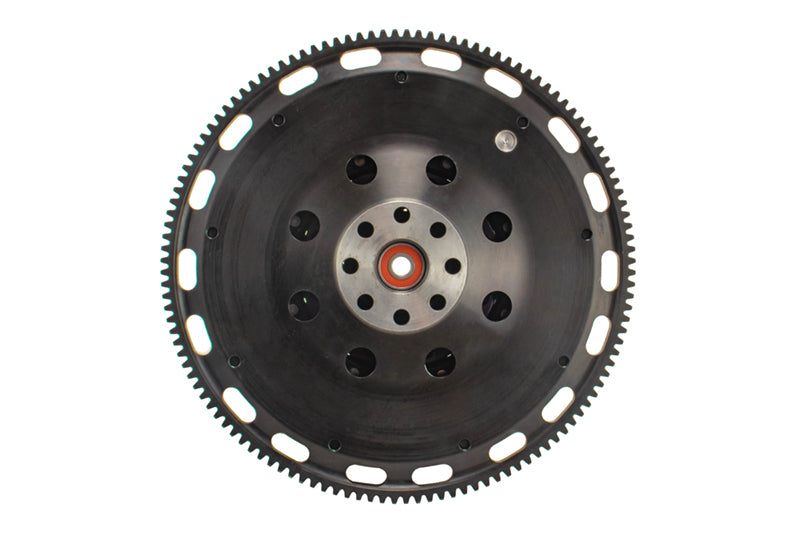

T1S-S07 Mod-Twin 225 HD Rigid Street Kit blends easy pedal feel, smooth but positive engagement with quick shifting for high powered AWD’s by combining twice the organic friction surfaces with a no-nonsense rigid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive chrome-moly hub which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.
Warranty
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
2004-2014	Subaru	Impreza	WRX STI
2007,2011-2014	Subaru	Impreza	WRX STI Limited
2010	Subaru	Impreza	WRX STI Special Edition
2015-2021	Subaru	WRX STI	Base
2015	Subaru	WRX STI	Launch Edition
2015-2021	Subaru	WRX STI	Limited
2019	Subaru	WRX STI	S209
2016	Subaru	WRX STI	Series.HyperBlue
2018	Subaru	WRX STI	Type RA
