ACT SB7-HDG6 fits Scion FR-S HD/Race Sprung 6 Pad Clutch Kit

ACT SB7-HDG6 2013 fits Scion FR-S HD/Race Sprung 6 Pad Clutch Kit

Brand: ACT

MPN: SB7-HDG6

UPC: 842385021290

Product Department: Drivetrain

Product Category: Clutch Kits - Single

Box Quantity: 1

Weight: 30.6 lbs

Height: 4.9 Inches

Width: 13.5 Inches

Length: 14 Inches

Prop65: Yes

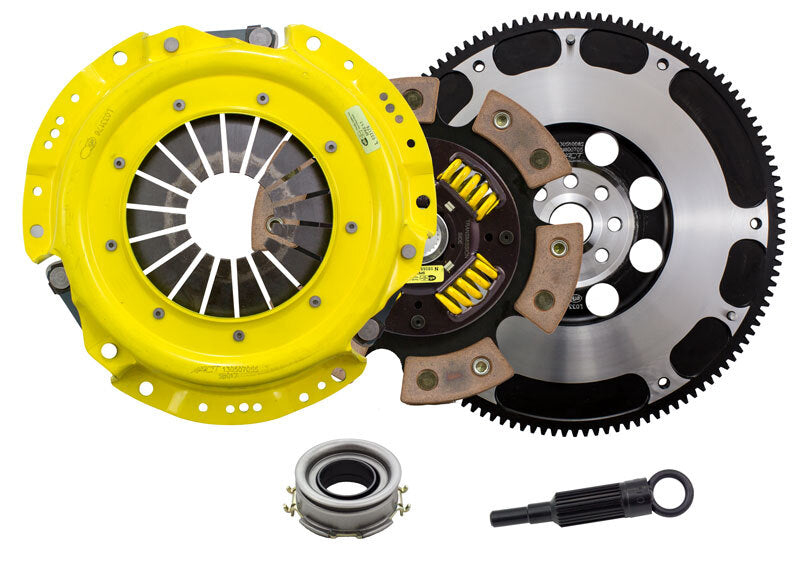

SB7-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Warranty
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
2013-2016	Scion	FR-S	Base
2013-2020	Subaru	BRZ	Limited
2013-2019	Subaru	BRZ	Premium
2015	Subaru	BRZ	Series.Blue
2019	Subaru	BRZ	Series.Gray
2016	Subaru	BRZ	Series.HyperBlue
2018,2020	Subaru	BRZ	TS
2017-2020	Toyota	86	Base
2018-2020	Toyota	86	GT
2020	Toyota	86	Hakone Edition
2017	Toyota	86	Special Edition
2019	Toyota	86	TRD Special Edition
