ACT SB10-HDG6 fits Subaru Impreza HD-M/Race Sprung 6 Pad Clutch Kit

ACT SB10-HDG6 2006 fits Subaru Impreza HD-M/Race Sprung 6 Pad Clutch Kit

Brand: ACT

MPN: SB10-HDG6

UPC: 842385021825

Product Department: Drivetrain

Product Category: Clutch Kits - Single

Box Quantity: 1

Weight: 20.5 lbs

Height: 5.2 Inches

Width: 13.5 Inches

Length: 13.8 Inches

Prop65: Yes

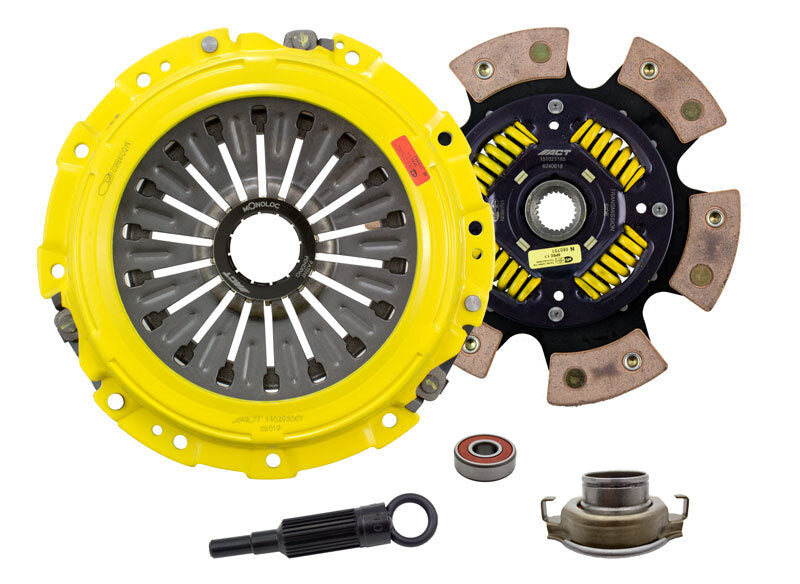

SB10-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened Chrome-moly steel construction will provide years of service.
Warranty
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
2004-2014	Subaru	Impreza	WRX STI
2007,2011-2014	Subaru	Impreza	WRX STI Limited
2010	Subaru	Impreza	WRX STI Special Edition
2007-2009	Subaru	Legacy	GT spec.B
2015-2021	Subaru	WRX STI	Base
2015	Subaru	WRX STI	Launch Edition
2015-2021	Subaru	WRX STI	Limited
2019	Subaru	WRX STI	S209
2016	Subaru	WRX STI	Series.HyperBlue
2018	Subaru	WRX STI	Type RA
