ACT SZ1-HDG4 fits Suzuki Esteem HD/Race Sprung 4 Pad Clutch Kit

ACT SZ1-HDG4 1995 fits Suzuki Esteem HD/Race Sprung 4 Pad Clutch Kit

Brand: ACT

MPN: SZ1-HDG4

UPC: 842385005672

Product Department: Drivetrain

Product Category: Clutch Kits - Single

Box Quantity: 1

Weight: 12.4 lbs

Height: 5 Inches

Width: 14 Inches

Length: 14 Inches

Prop65: Yes

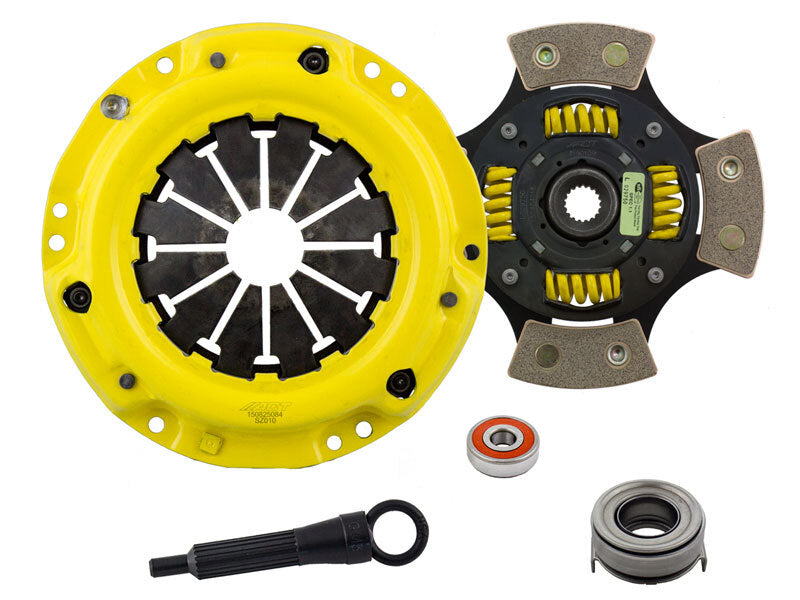

SZ1-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
Warranty
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1987-1988	Chevrolet	Sprint	Base
1987-1988	Chevrolet	Sprint	ER
1987-1988	Chevrolet	Sprint	Metro
1987-1988	Chevrolet	Sprint	Turbo
1995	Geo	Metro	Base
1995-1997	Geo	Metro	LSi
1995-2000	Suzuki	Esteem	GL
1995-2000	Suzuki	Esteem	GLX
1995-1999	Suzuki	Swift	Base
1990-1994,2000-2001	Suzuki	Swift	GA
1990,2000-2001	Suzuki	Swift	GL
1989-1990	Suzuki	Swift	GLX
1990-1994	Suzuki	Swift	GS
1990-1994	Suzuki	Swift	GT
1989	Suzuki	Swift	GTI
1990	Suzuki	Swift	S
