ACT ZX6-HDR4 fits Mazda RX-7 HD-M/Race Rigid 4 Pad Clutch Kit

ACT ZX6-HDR4 1993 fits Mazda RX-7 HD-M/Race Rigid 4 Pad Clutch Kit

Brand: ACT

MPN: ZX6-HDR4

UPC: 842385021931

Product Department: Drivetrain

Product Category: Clutch Kits - Single

Box Quantity: 1

Weight: 16.7 lbs

Height: 5.1 Inches

Width: 12.9 Inches

Length: 13.7 Inches

Prop65: Yes

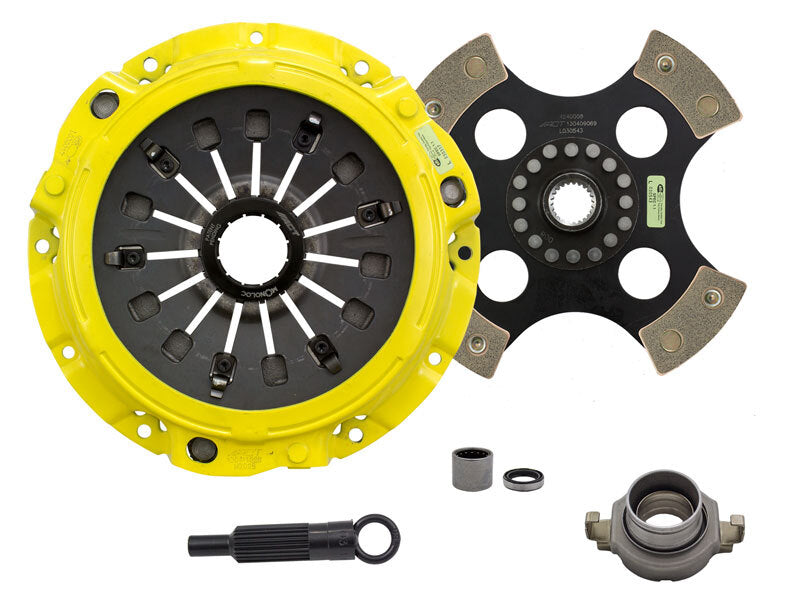

ZX6-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.
Warranty
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1993-1995	Mazda	RX-7	Base
1993	Mazda	RX-7	R1
1994-1995	Mazda	RX-7	R2
1993-1995	Mazda	RX-7	Touring
