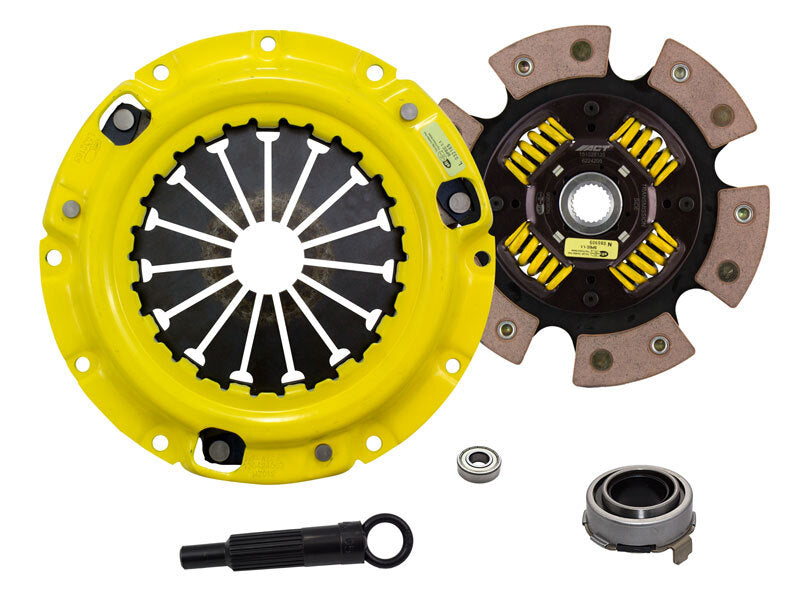

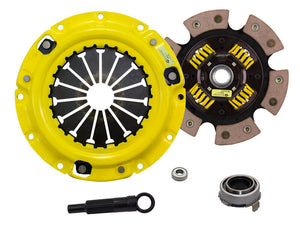

ACT ZM2-HDG6 fits Mazda Miata HD/Race Sprung 6 Pad Clutch Kit

ACT ZM2-HDG6 1991 fits Mazda Miata HD/Race Sprung 6 Pad Clutch Kit

Brand: ACT

MPN: ZM2-HDG6

UPC: 842385008833

Product Department: Drivetrain

Product Category: Clutch Kits - Single

Box Quantity: 1

Weight: 15 lbs

Height: 5.3 Inches

Width: 13.8 Inches

Length: 14 Inches

Prop65: Yes

ZM2-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Warranty
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1999	Mazda	Miata	10th Anniversary
1990-1997,1999-2005	Mazda	Miata	Base
1993	Mazda	Miata	LE
2000-2005	Mazda	Miata	LS
1994-1997	Mazda	Miata	M Edition
2004-2005	Mazda	Miata	Mazdaspeed
1991,2000-2003	Mazda	Miata	SE
2003	Mazda	Miata	Shinsen
1997	Mazda	Miata	STO
