ACT TC1-XTG6 fits Geo Geo Prizm XT/Race Sprung 6 Pad Clutch Kit

ACT TC1-XTG6 1991 Geo Prizm XT/Race Sprung 6 Pad Clutch Kit

Brand: ACT

MPN: TC1-XTG6

UPC: 842385005863

Product Department: Drivetrain

Product Category: Clutch Kits - Single

Box Quantity: 1

Weight: 17.1 lbs

Height: 5 Inches

Width: 14 Inches

Length: 14 Inches

Prop65: Yes

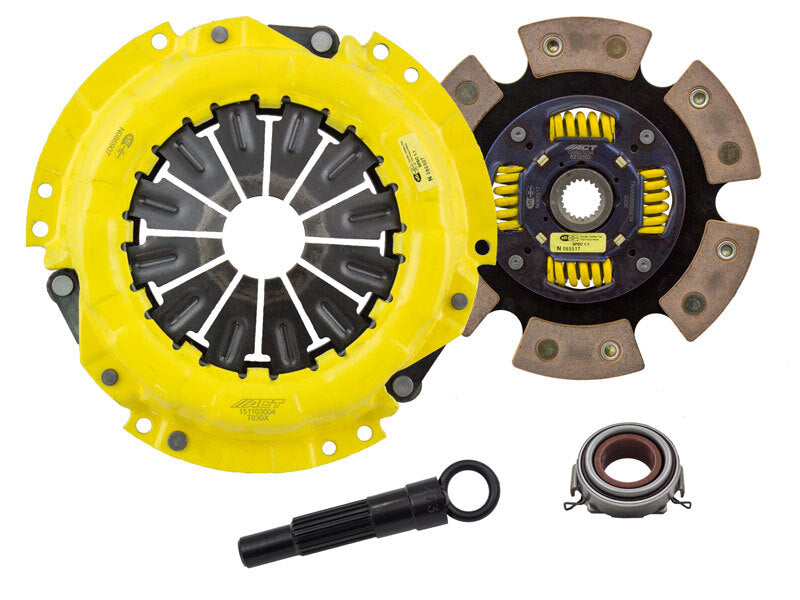

TC1-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Warranty
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1990-1991	Geo	Prizm	GSi
1990-1991	Toyota	Celica	ST
1989-1991	Toyota	Corolla	GTS
1985-1989	Toyota	MR2	GT
