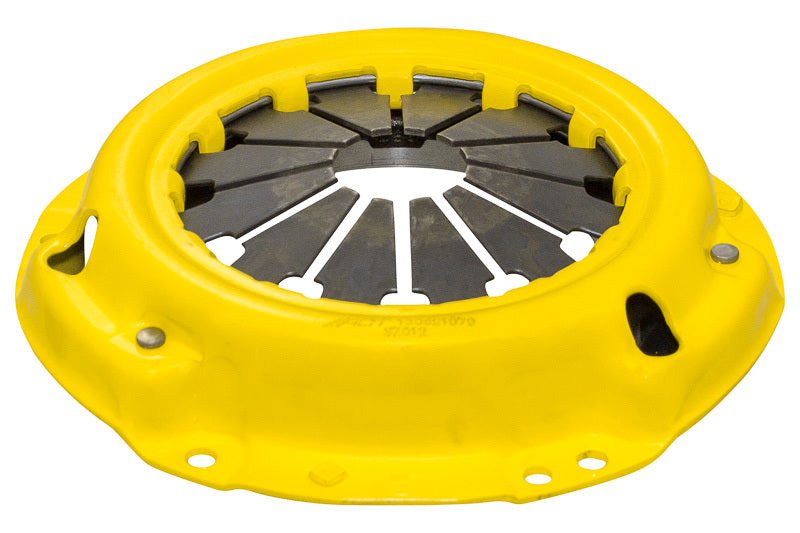

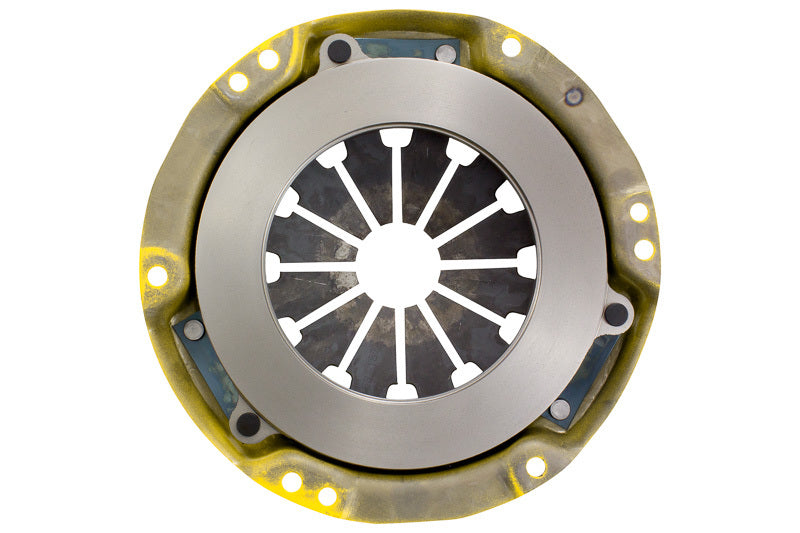

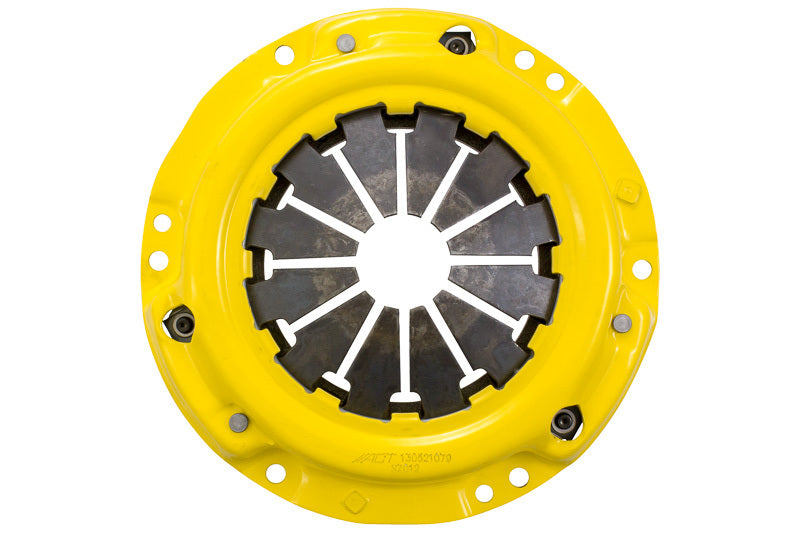

ACT SZ012 fits Suzuki Samurai P/PL Heavy Duty Clutch Pressure Plate

ACT SZ012 1986 fits Suzuki Samurai P/PL Heavy Duty Clutch Pressure Plate

Brand: ACT

MPN: SZ012

UPC: 842385000035

Product Department: Drivetrain

Product Category: Pressure Plates

Box Quantity: 1

Weight: 7.8 lbs

Height: 3 Inches

Width: 14 Inches

Length: 14 Inches

Prop65: Yes

SZ012 pressure plate features an exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All ACT diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Heavy Duty pressure plates increase clamp load by 20 to 50 percent. The Heavy Duty pressure plates are recommended for use with a street or race disc.
Warranty
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1989	Suzuki	Samurai	Base
1986-1988,1991-1993	Suzuki	Samurai	JA
1990-1995	Suzuki	Samurai	JL
1991	Suzuki	Samurai	JS
1986-1988	Suzuki	Samurai	JX
1986-1987	Suzuki	Samurai	JX SE
